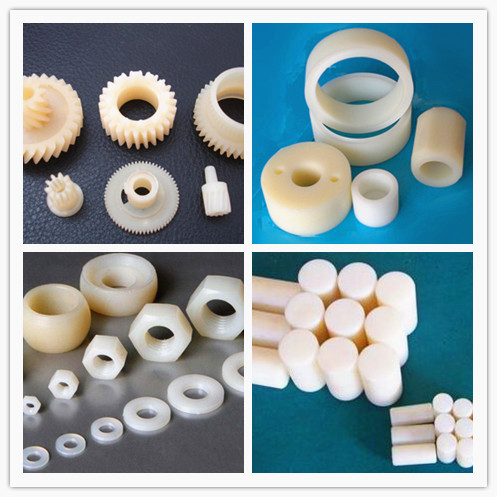

Nylon
Technical Data Sheet
PROPERTIES |
Test Method |
Unit |
Value |
I.Physical Properties |
|||
Density |
ISO 1183 |
g/cm3 |
1.15~1.2 |
Water absorption 24hrs |
ISO 62 |
% |
2.5 |
II.Thermal Properties |
|||
Heat deflection temperature - HDT/A |
ISO 75A |
ºC |
95 |
Min. service temperature |
|
ºC |
-30 |
Max. service temperature |
|
ºC |
105 |
Thermal conductivity at 23 ºC |
DIN 11359 |
W/(K*m) |
0.23 |
Coefficient of linear thermal expansion |
ISO 11359 |
10-4*K-1 |
0.8 |
Flammability Rating(6mm thickness) |
UL 94 |
- |
HB |
III.Mechanical Properties at 23ºC |
|||
Tensile strength at yield |
ISO 527-2 |
MPa |
80 |
Tensile strength at break |
ISO 527-2 |
Mpa |
- |
Elongation at break |
ISO 527-2 |
% |
3 |
Modulus of elasticity after tensile test |
ISO 527-2 |
MPa |
3,300 |
Modulus of elasticity after flexural test |
ISO 178 |
MPa |
- |
Hardness - Shore D |
DIN 53505 |
|
84 |
Charpy impact strength |
ISO 179 |
kJ/m2 |
N. B. |
Friction coefficient |
DIN 53375 |
|
0.36 |
IV.Electrical Properties at 23ºC |
|||
Dielectric constant at 1 MHz |
IEC 60250 |
106Hz |
3.70 |
Dielectric loss factor at 1 MHz |
IEC 60250 |
106Hz |
0.03 |
Volume resistively |
IEC 60093 |
Ohm (Ω) * cm |
≥1015 |
Surface resisively |
IEC 60093 |
Ohm (Ω) |
≥1013 |
Dielectric strength |
IEC 60243-1 |
kV/mm |
50 |
NOTE: 1 g/cm3 = 1,000 kg/m3, 1 Mpa = 1 N/mm2, 1kV/mm = 1 MV/m |
